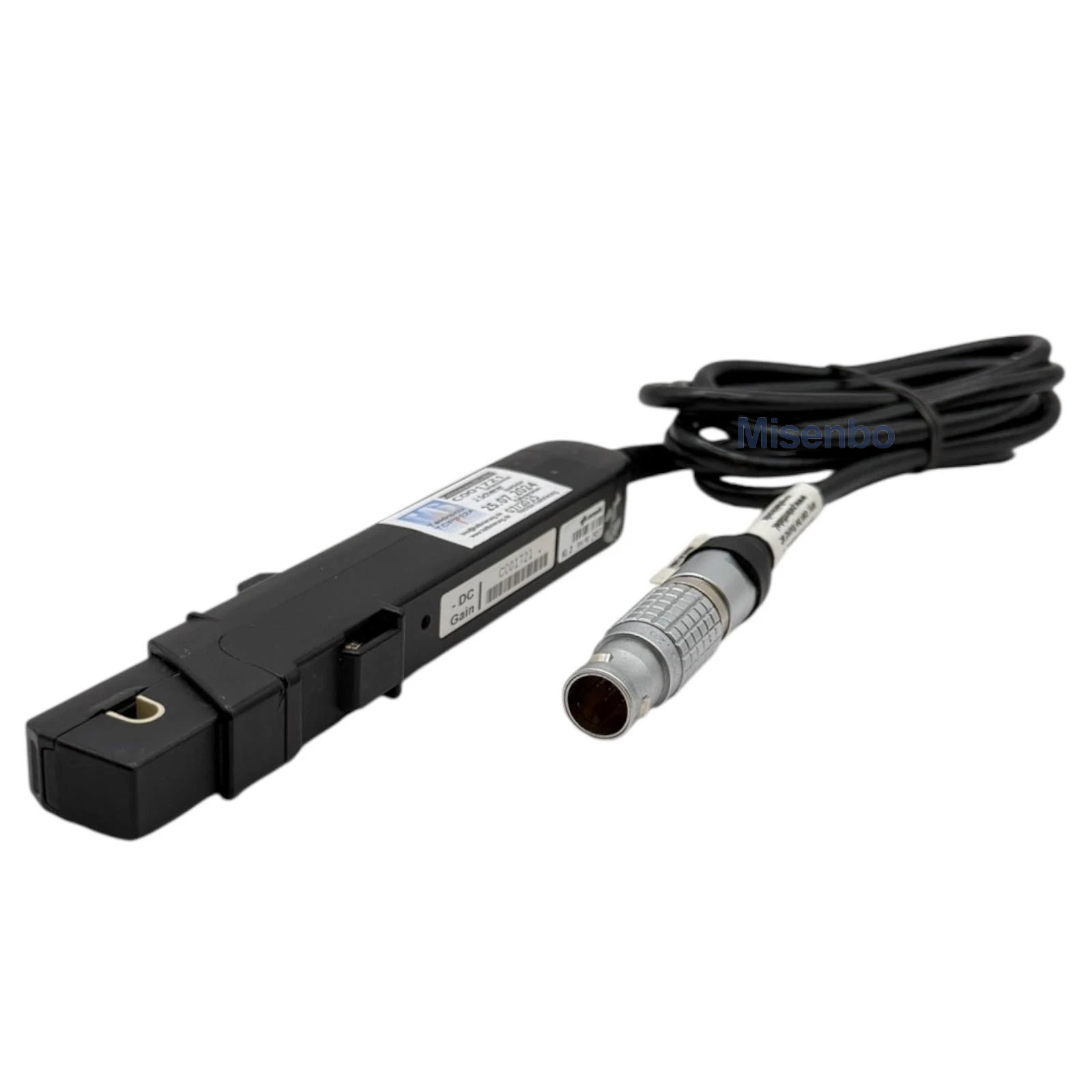

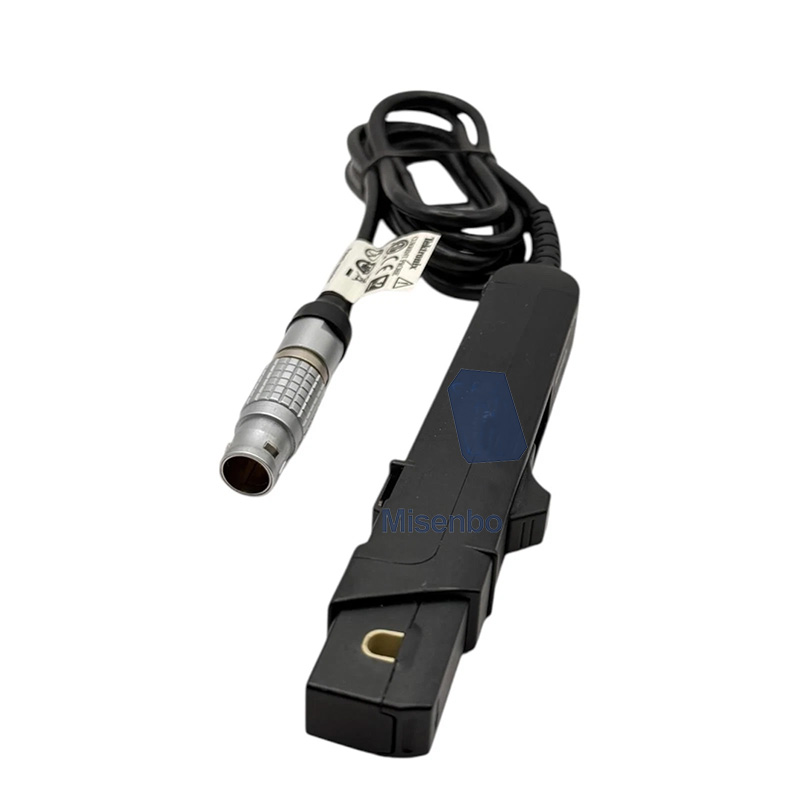

Used Tektronix TCP312A Current Probe Clamp Meter

Specification： The Tektronix TCP312A is a high‑performance AC/DC current probe with 100 A DC continuous current capacity and DC‑100 MHz bandwidth, designed for high‑power high‑speed current measurement with Tektronix oscilloscopes. It supports 30 A / 100 A switchable ranges, with built‑in Degauss and Auto‑zero functions. The split‑core clamp enables non‑intrusive measurement without wire cutting. Equipped with TekVPI intelligent interface, it auto‑synchronizes range data with compatible Tektronix oscilloscopes. Featuring low noise and high accuracy, it covers small‑current to high‑power current testing. Ideal for power inverter testing, motor drive analysis, large power supply measurement, industrial power electronics and high‑current circuit debugging. Used unit in excellent working condition, fully tested and calibrated, stable for laboratory and industrial measurement. 特点： Bandwidth：DC‑100 MHz Measurement Range：30 A / 100 A switchable Max Continuous DC Current：100 A Peak Pulse Current：150 A Interface：TekVPI intelligent interface, auto‑match oscilloscope Structure：Split‑core clamp, non‑intrusive measurement
