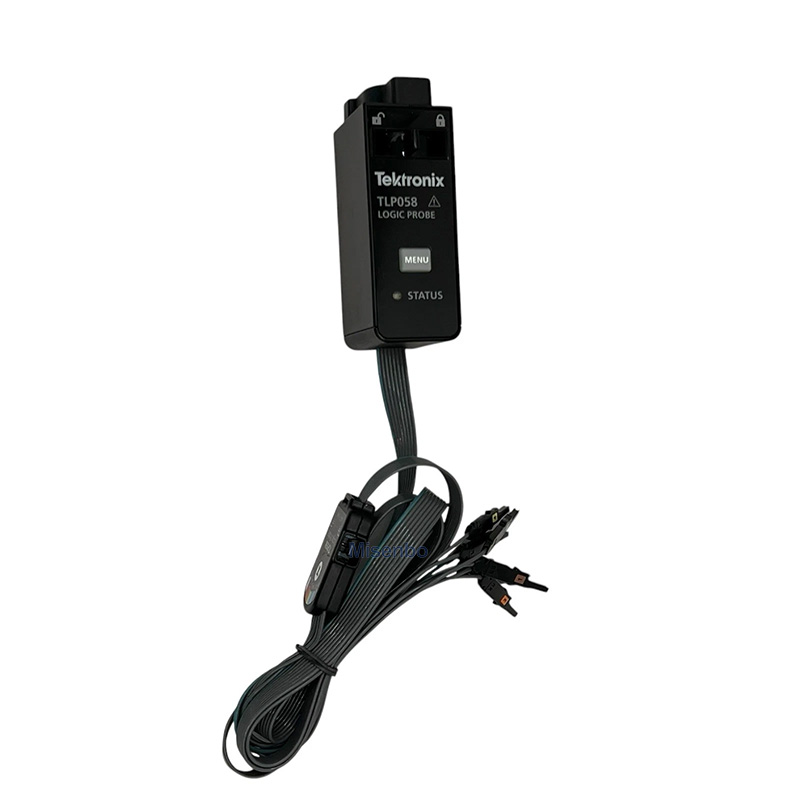

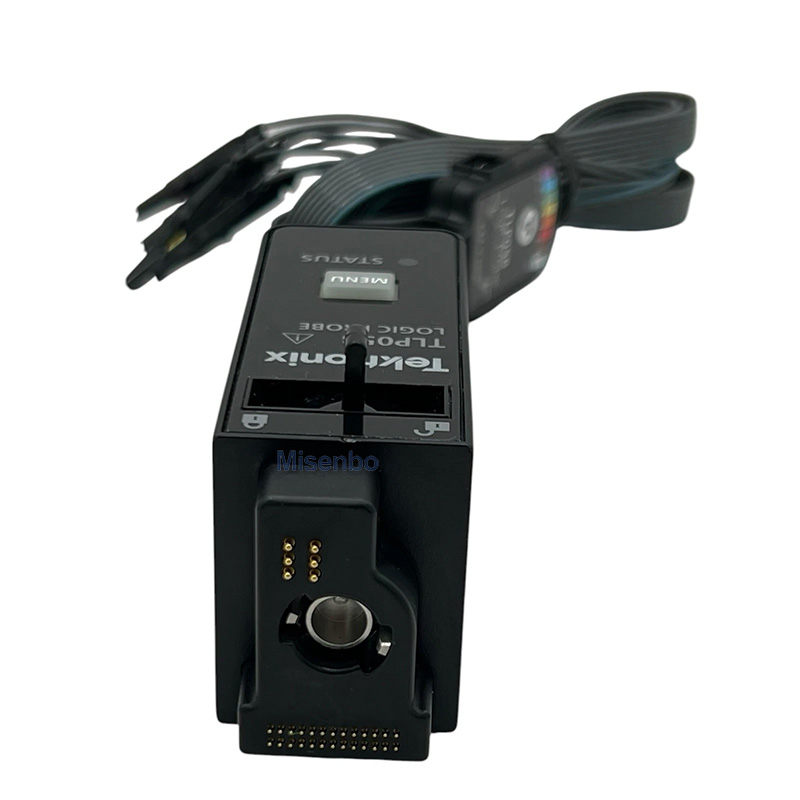

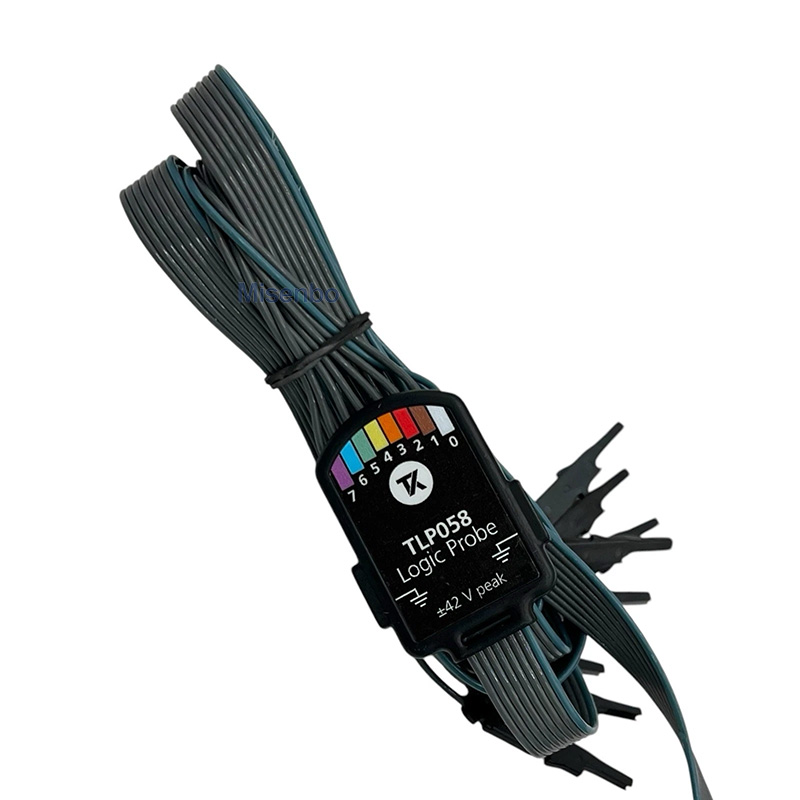

Tektronix TLP058 8-Channel FlexChannel General-Purpose Logic Probe

Original Tektronix TLP058 FlexChannel general-purpose 8-channel single-ended logic probe, exclusively designed for Tektronix 4/5/6 Series FlexChannel MSO oscilloscopes.500MHz maximum toggle rate, 100kΩ(±1%) input resistance & ultra-low 3pF input capacitance to reduce circuit loading & preserve signal integrity.Each FlexChannel port converts 1 analog channel into 8 digital logic inputs; multi-probe stacking expands digital channels flexibly.Per-channel independent ground lead, adjustable threshold ±40V, max input ±42V peak, 30Vpp@≤200MHz /10Vpp@＞200MHz dynamic range.Fully tested working condition, ideal for SPI/I2C/UART bus debug, embedded MCU & digital PCB verification.
