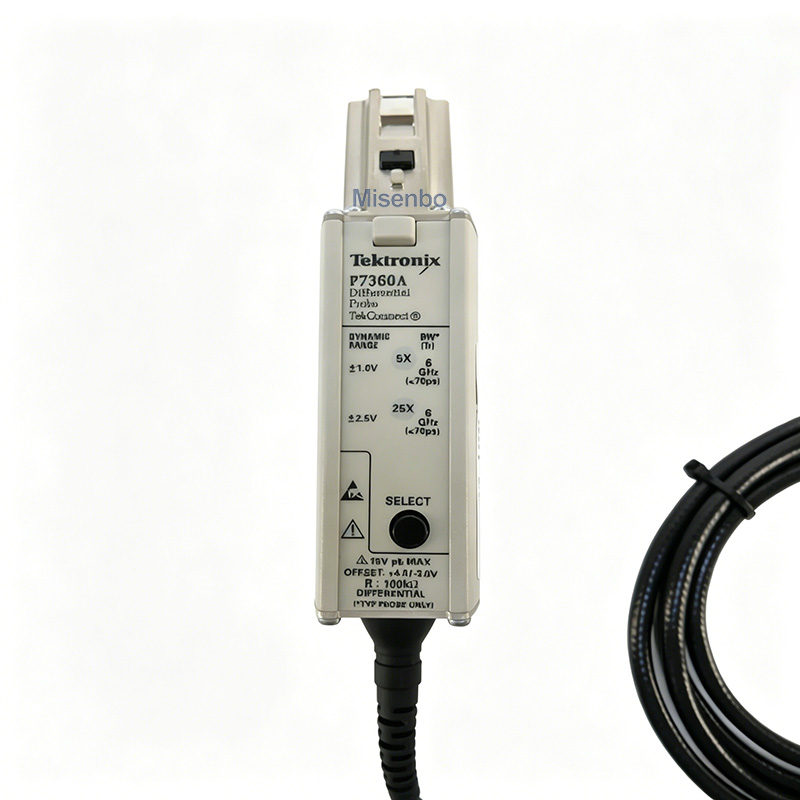

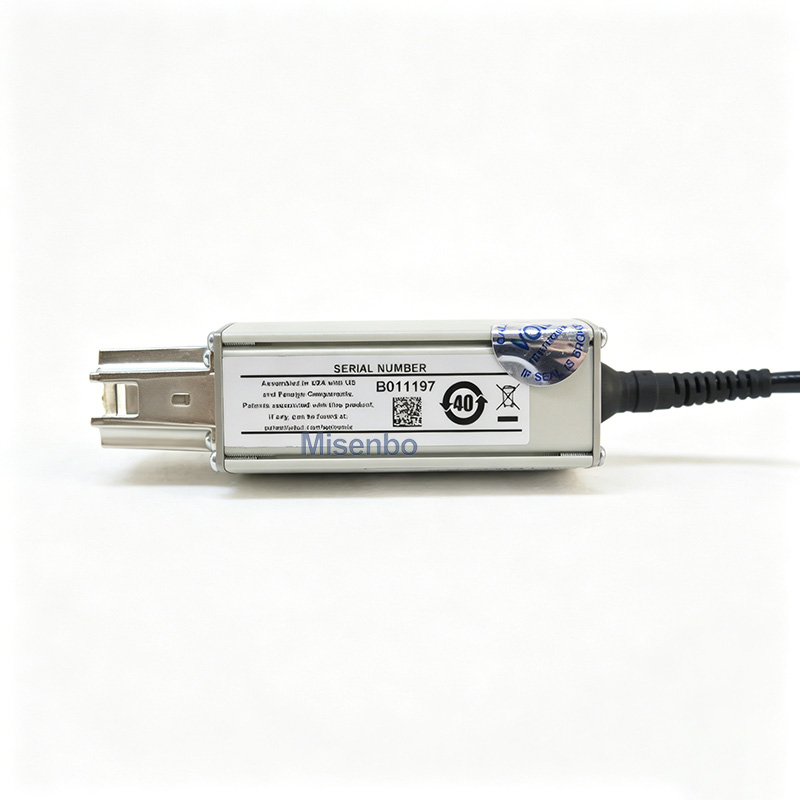

Used Tektronix P7360A 6GHz Active Differential Probe

Used original Tektronix P7360A Z-Active 6GHz high-performance active differential probe, fully tested & working properly.DC~6GHz bandwidth, user switchable 5X /25X attenuation; 2Vpp@5X,5Vpp@25X extended dynamic range(upgrade vs old P7360).Ultra-low circuit loading:100kΩ differential DC input,50kΩ single-ended;AC impedance＞290Ω@4~8GHz,minimize DUT signal distortion.Support dual measurement:differential & single-ended test; equipped interchangeable Tip-Clip accessories for handheld/solder-down/fixture probing.TekConnect port compatible with Tektronix MSO70000,DSA72000,CSA70000 series high-end oscilloscopes for high-speed bus debugging.
