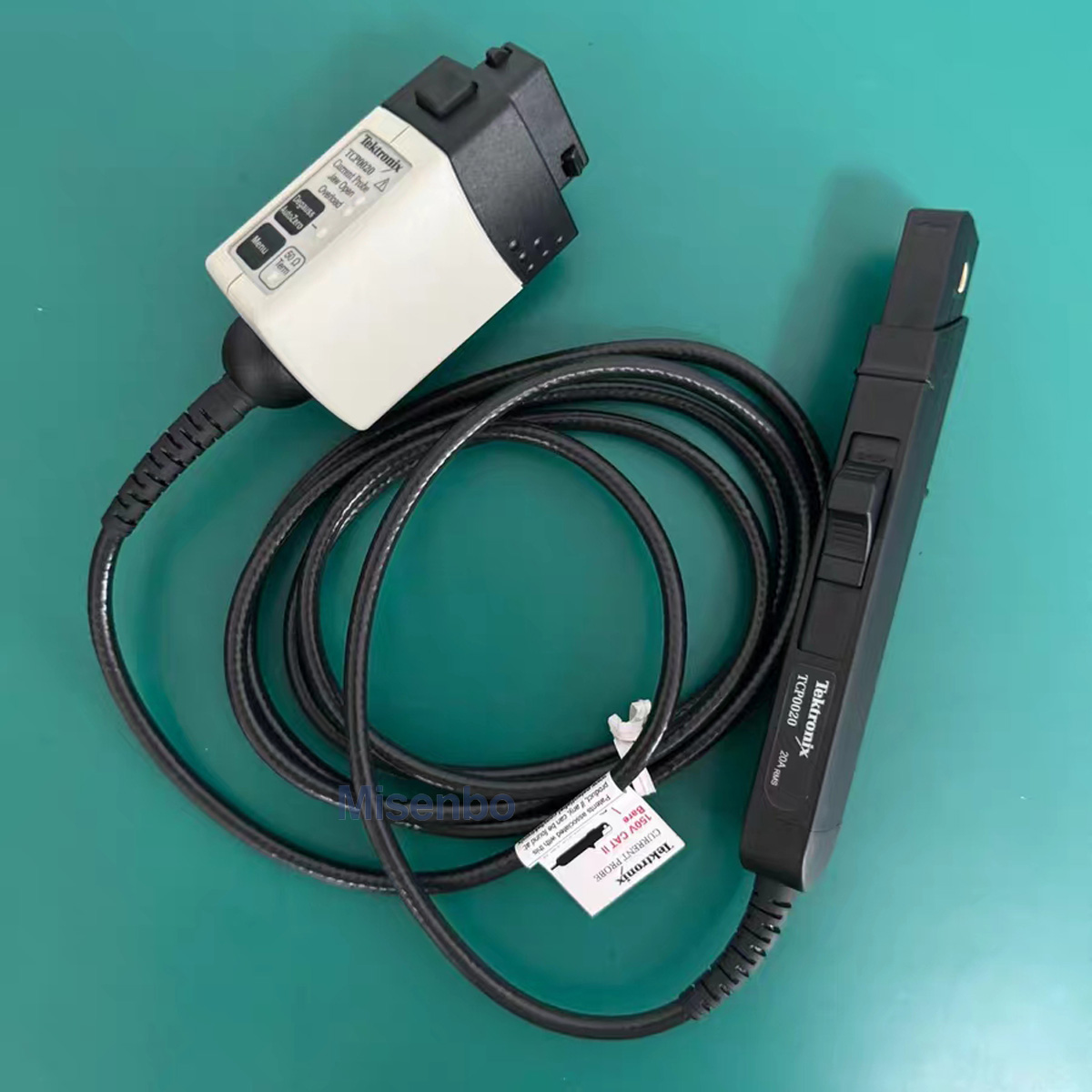

Tektronix TCP0020 Black 20 Amp RMS Oscilloscopes AC/DC Current Probe

Condition：Used Specification： The Tektronix TCP0020 is a high‑performance AC/DC current probe for Tektronix oscilloscopes, supporting up to 20A current measurement with wide bandwidth for precise high‑speed signal testing. It features adjustable range, degauss and auto‑zero functions, with a compact split‑core jaw for non‑intrusive wire‑clamp measurement. Equipped with TekVPI interface, it auto‑synchronizes range with Tektronix oscilloscopes, ideal for power electronics, circuit debugging, power supply testing, motor analysis and electronic R&D. Used unit in excellent working condition, fully tested, low noise and high accuracy for laboratory and industrial measurement. Feature： Bandwidth: DC‑100 MHz Measurement Range: Switchable between 5 A and 20 A Maximum Continuous Current: 20 A RMS Peak Pulse Current: 40 A Sensitivity: Detectable from 1 mA Interface: TekVPI intelligent interface, auto‑recognized and matched with oscilloscopes Structure: Split‑core clamp design, non‑intrusive measurement without wire cutting
