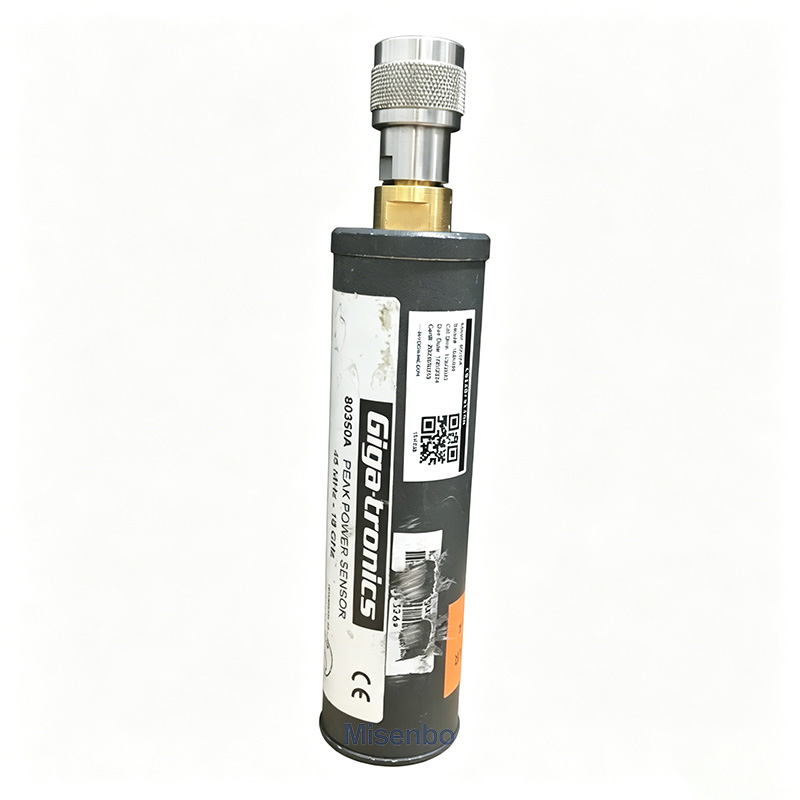

Giga-tronics 80350A Peak Power Sensor 45 MHz-18 GHz

Product Overview Pre-owned Giga-tronics 80350A wideband peak/average RF power sensor, fully swept and calibrated across full 45 MHz to 18 GHz frequency range. This modulated power probe is designed to pair with Giga-tronics 8650A and 8652A dual-channel universal power meters, delivering up to 10 MHz video bandwidth to capture fast pulse, GSM, CDMA, TDMA and radar burst signals simultaneously with peak and average power readings. Low VSWR design minimizes signal reflection error, widely used for wireless communication, aerospace radar, RF component production QC and lab microwave characterization. Core Technical Specifications Frequency Range: 45 MHz ~ 18 GHz Measurement Modes: CW Continuous Wave, Peak Power, Average Power, Modulated Pulse / Burst Power Video Bandwidth: 10 MHz for fast transient modulated signal capture Dynamic Power Range: -60 dBm ~ +20 dBm, max safe input +23 dBm (200 mW) RF Connector: Male 50Ω Type-N VSWR Performance: 45MHz–6GHz ≤ 1.15:1 6GHz–12.4GHz ≤ 1.22:1 12.4GHz–18GHz ≤ 1.30:1 Pulse Response: Fast rise time for narrow radar pulse detection
