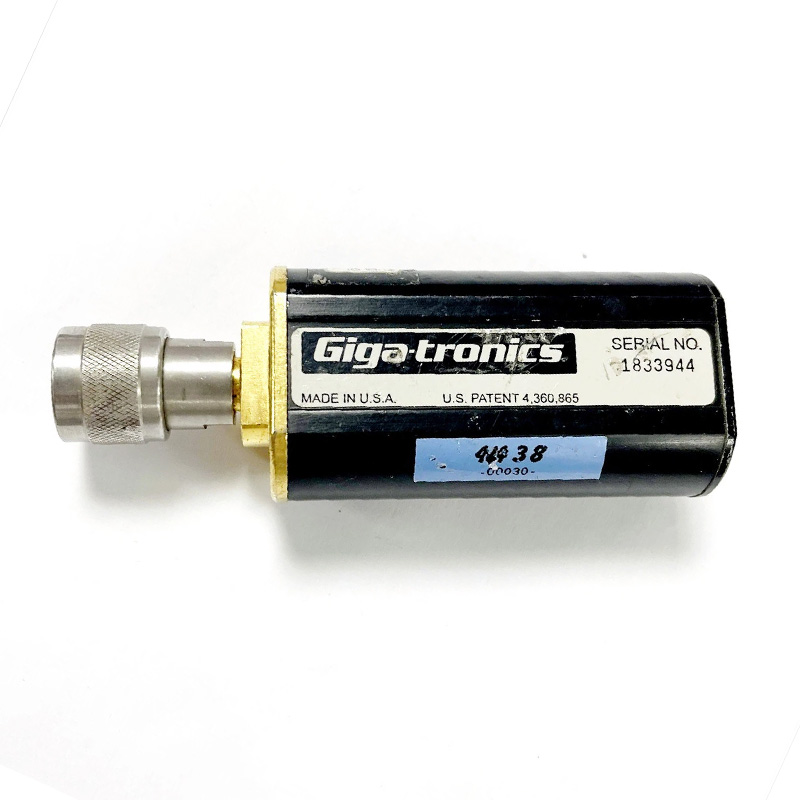

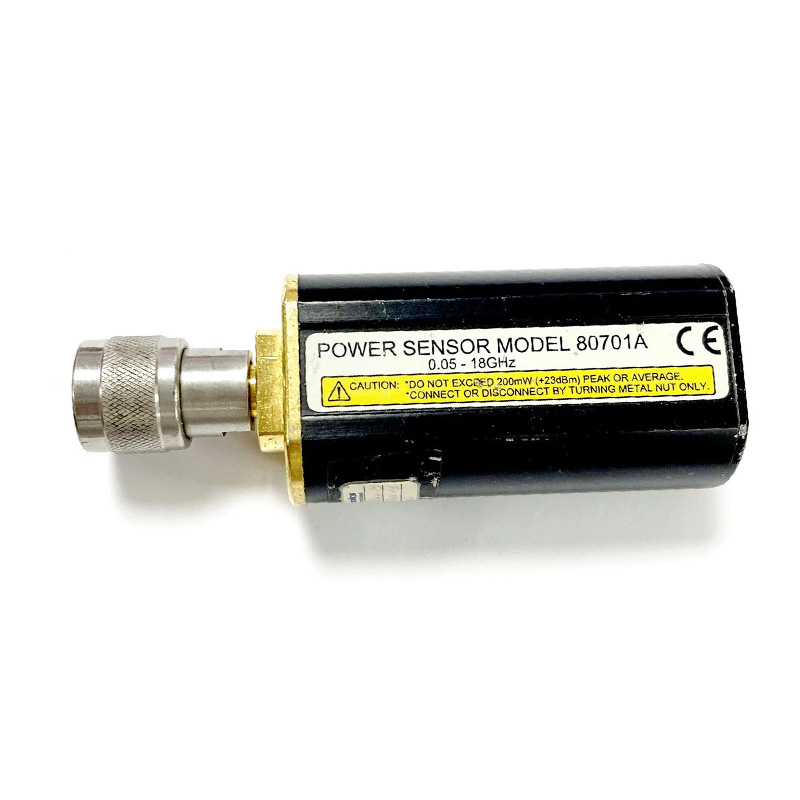

Gigatronics 80701A Power Sensor 18.0 GHz

Product Overview Pre-owned Gigatronics 80701A wideband modulated RF power sensor, fully tested and calibrated across full 50MHz~18GHz frequency band. Designed to pair with Gigatronics 8650A series power meters, it supports both CW continuous wave and modulated signal power measurement, including peak & average power capture with up to 10MHz video bandwidth. With ultra-wide 80dB dynamic range and low VSWR performance, it is the standard probe for wireless communication, radar, aerospace defense and microwave component testing labs. Core Technical Specifications Frequency Coverage: 50 MHz ~ 18 GHz CW; 250 MHz ~ 18 GHz modulated signal Power Measurement Range: CW: -67 dBm ~ +20 dBm Modulated: -60 dBm ~ +20 dBm Max Safe Input Power: +23 dBm (200 mW) Video Bandwidth: 10 MHz, support pulse, CDMA, GSM, EDGE wideband modulated signals RF Connector: Male Type-N 50 Ohm standard interface VSWR Performance: 0.01~2GHz ≤1.12:1 2~12.4GHz ≤1.22:1 12.4~18GHz ≤1.29:1 Linearity Accuracy: ±0.05dB per 10dB within -20~+20dBm range Dynamic Range: Full 80dB measurement window for weak & high power signals Host Compatibility: Direct plug-and-play with Gigatronics 8650A, 8651A, 8652A RF power meters
