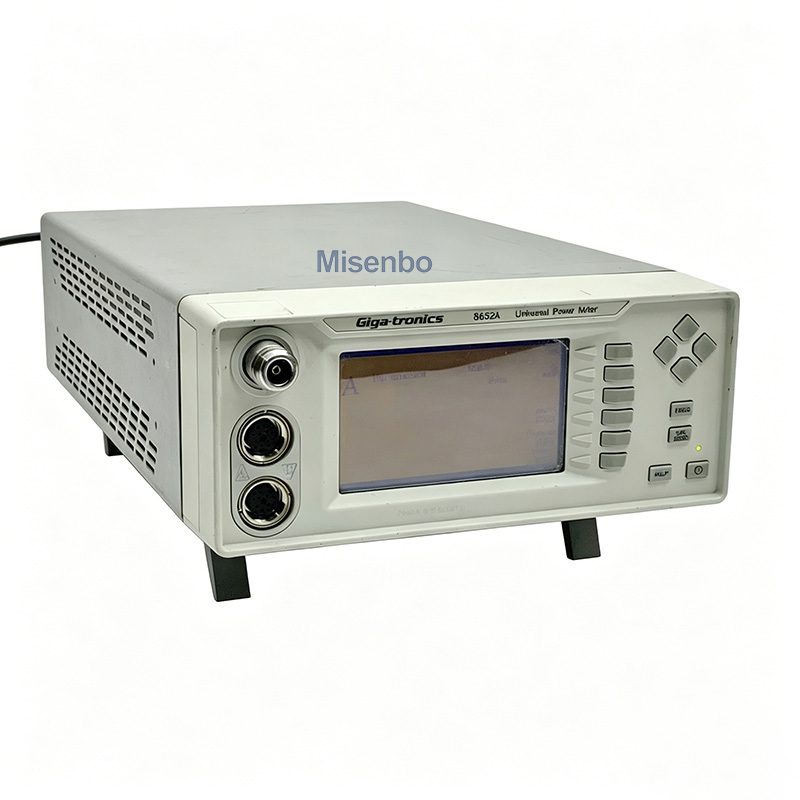

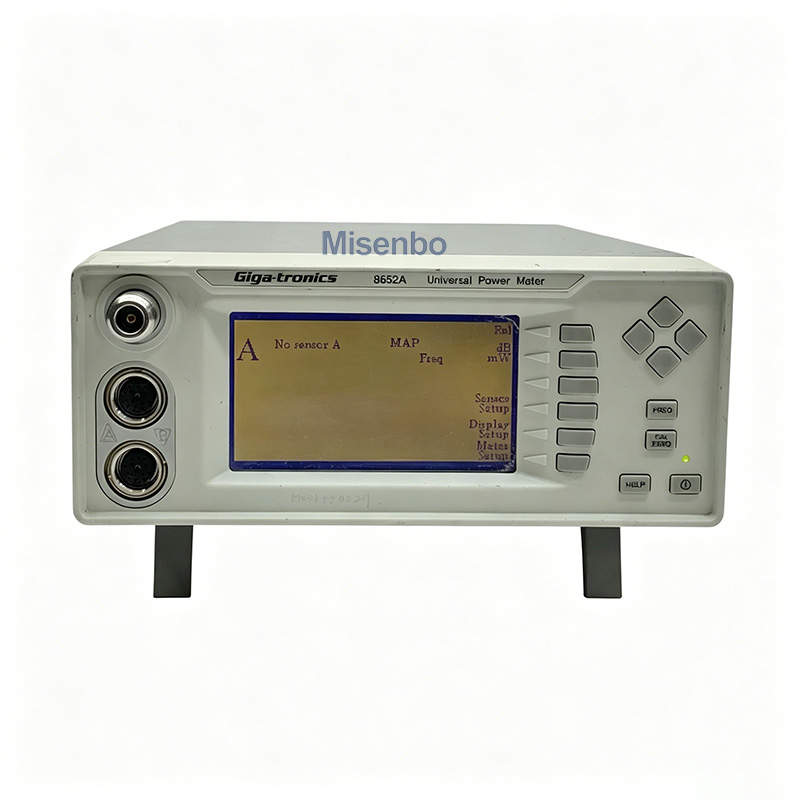

Gigatronics 8652A Power Meter, Dual Channel, Peak and Average Power

Product Overview Pre-owned Gigatronics 8652A dual-channel universal RF power meter, full factory self-test and calibration verification passed. It is a high-performance bench power measurement host supporting simultaneous dual-channel testing, capable of capturing CW continuous wave, peak power and average power for complex modulated signals including GSM, TDMA, IS-95 CDMA and 3G 10MHz wideband waveforms. Equipped with high-speed GPIB remote control, automatic time gating, direct crest factor calculation and statistical power histogram analysis functions, widely matched with Gigatronics 80701A/80601A/80401A series power sensors for wireless communication, radar, aerospace defense and RF component automated production testing. Core Technical Specifications Channel Configuration: Dual independent sensor input ports (Channel A & B), synchronous dual-channel real-time display Frequency Coverage: 10MHz ~ 40GHz (limit depends on matched power sensor) Dynamic Power Range: -70 dBm ~ +47 dBm (sensor dependent) Measurement Modes: CW, Peak Power, Average Power, MAP Modulated Average, PAP Pulse Average, BAP Burst Average, Time-Gated Trigger Measurement Video Bandwidth: Max 10MHz instrument bandwidth, support fast pulse & wideband communication signal demodulation test GPIB Reading Speed: Swift CW mode: >1750 readings/sec Modulated normal mode: >300 readings/sec Buffered high-speed mode: up to 26,000 readings/sec Built-in Analysis Functions: Direct crest factor readout, statistical mean/std deviation, CCDF/CDF histogram plotting, burst mask test Rise Time Response: 100ns max for peak pulse capture, accurately measure short radar burst signals Communication: Standard IEEE-488 GPIB interface for automated test system integration Optional Accessories: Built-in 50MHz/1GHz switchable calibrator (Option 12), rack mount kit, dual rack panel
