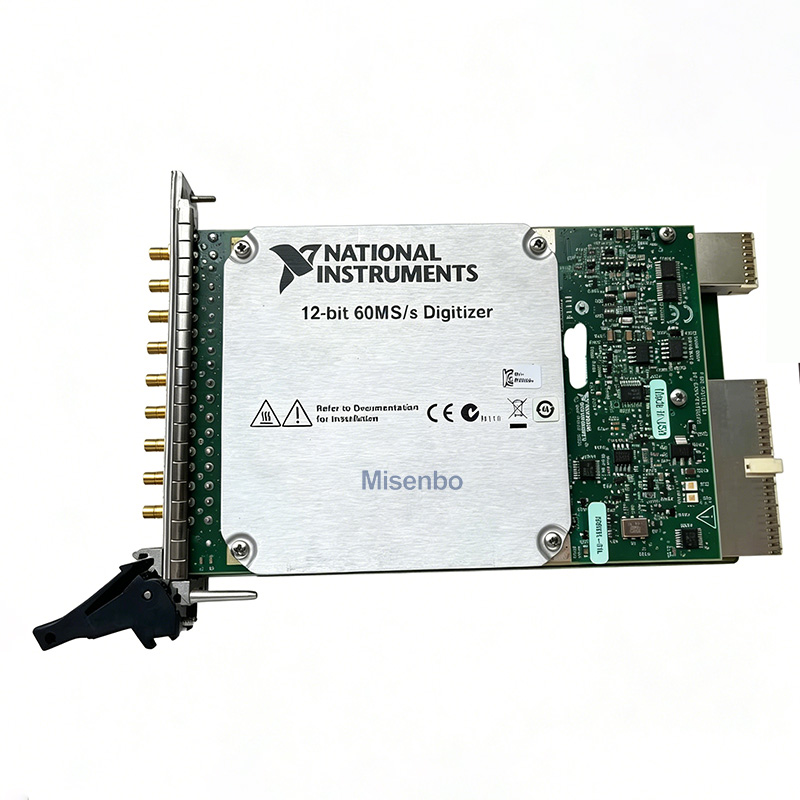

Used National Instruments PXI‑5105 12‑Bit 60 MS/s Digitizer

Analog Input Channels: 8‑channel simultaneous acquisition (CH0‑CH7) Resolution: 12‑bit ADC Maximum Sampling Rate: 60 MS/s (60 million samples per second) Bandwidth: 30 MHz Input Connectors: SMA coaxial connectors (gold‑plated SMA; 8 signal channels + 1 PFI trigger as shown) Input Range: ±50 mV ~ ±20 V, software‑configurable Impedance: Selectable 50 Ω / 1 MΩ, AC/DC coupling Key Features Full‑speed simultaneous acquisition on 8 channels, ideal for multi‑channel parallel high‑frequency signal testing 60 MS/s sampling rate and 30 MHz bandwidth for capturing pulses, transient shocks, ultrasonic signals and high‑frequency vibrations Modular PXI architecture supports multi‑card synchronization for expansion up to hundreds of channels to build large‑scale integrated test systems Complete oscilloscope functions supported: triggering, averaging, FFT spectrum analysis, waveform playback and automatic measurement Compatible with LabVIEW for automated testing and high‑speed data logging
