NI PXI-5105 512M oscilloscope/digitizer 8-channel

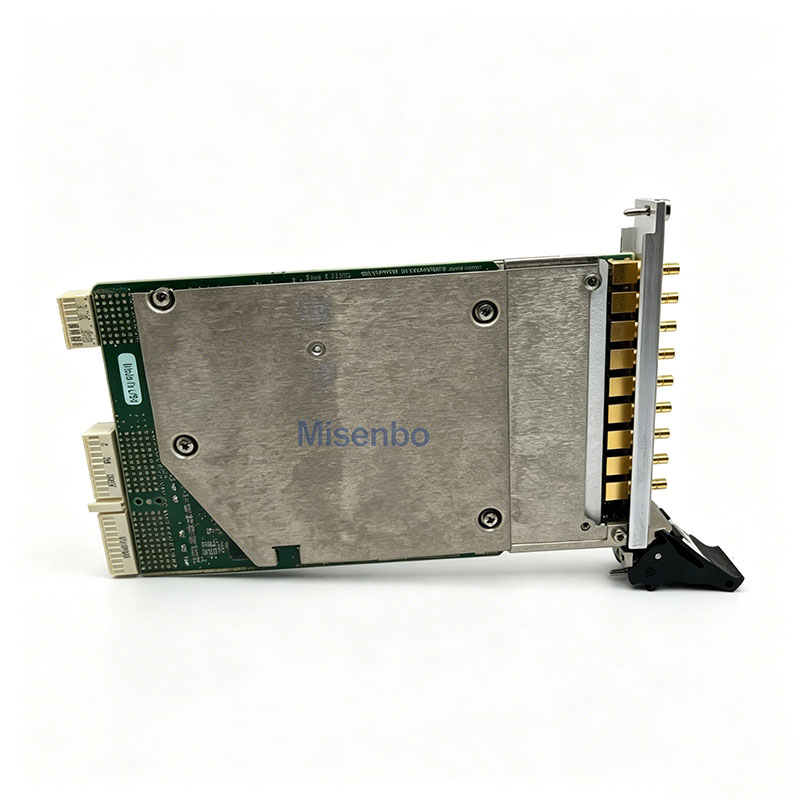

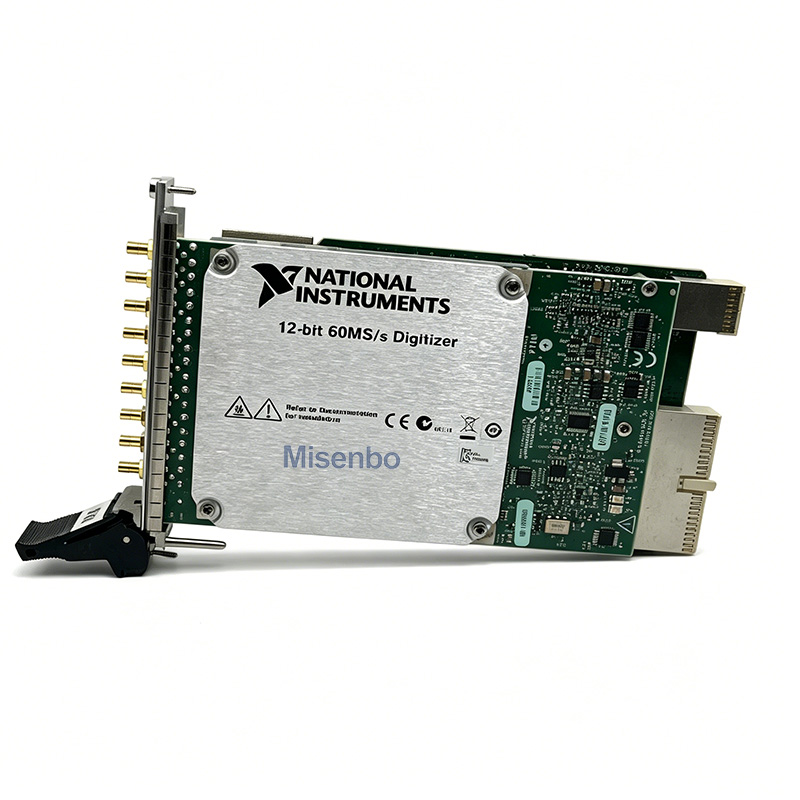

Fully tested & working used National Instruments PXI-5105 (512MB version, part number 783590-03) high-density oscilloscope/digitizer module. It provides 8 simultaneously sampled analog input channels, 60 MHz bandwidth, 60 MS/s real-time sampling, and 12-bit vertical resolution. Equipped with 512 MB deep onboard memory for long-duration waveform capture and high-resolution recording. Programmable input impedance (50 Ω / 1 MΩ), wide voltage ranges (±15 V max), and multiple triggering modes (edge, window, hysteresis, digital) support flexible signal measurement. Compatible with PXI/PXIe hybrid slots, NI-DAQmx drivers, and NI-SCOPE software for seamless integration into test systems. Ideal for multi-channel vibration, acoustic, power, and general-purpose time/frequency domain testing.
