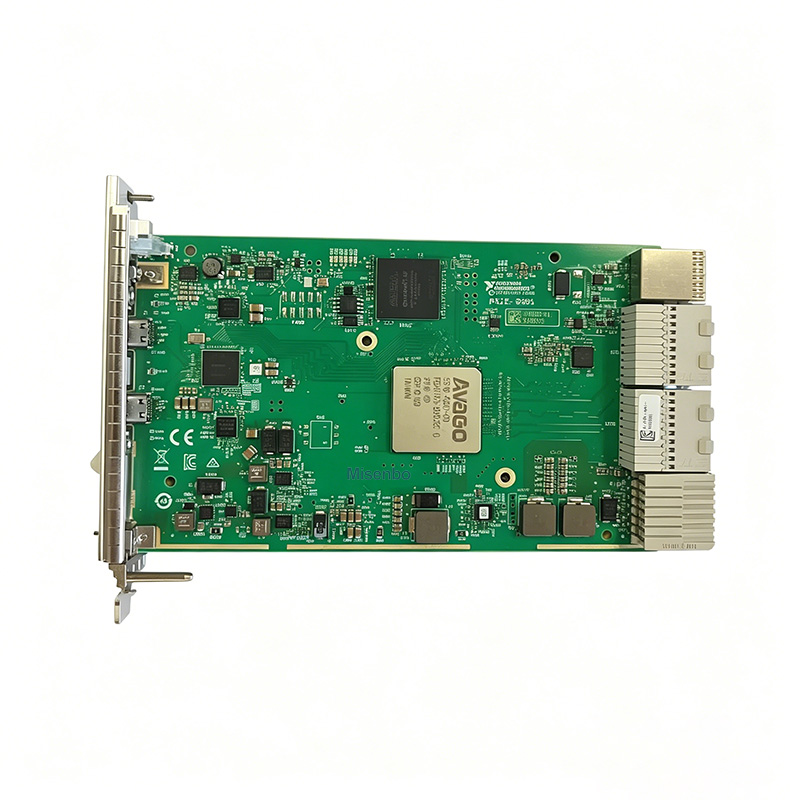

National Instruments NI PXIe-8301 785679-01 PXI remote control module

Product Overview Pre-owned National Instruments NI PXIe-8301 remote control module, part number 785679-01, passed complete functional test. It is a MXI‑Express Gen1 x4 bridge module designed for PXI/PXIe chassis remote extension, acting as high-speed communication bridge between PCIe host controller PC and remote PXIe measurement chassis. It realizes transparent remote control of multi-slot PXI DAQ, digitizer, switch and RF modules via copper or fiber MXI cables, widely used in LabVIEW automated test equipment, aerospace measurement, automotive EMC test and industrial multi-chassis distributed data acquisition systems. Core Technical Specifications Model & PN: PXIe-8301, Part Number 785679-01 Bus Standard: MXI‑Express Generation 1, x4 PCIe differential link Transmission Bandwidth: Up to 1GB/s bidirectional throughput Function: PCIe Host ↔ Remote PXIe Chassis transparent bridging, remote PXI chassis control Cable Compatibility: Support copper MXI‑Express cable and fiber optic MXI extension cable for long distance test setup System Compatibility: All NI PXIe/PXI chassis, PCIe host controllers, full LabVIEW, LabWindows/CVI driver support Synchronization: Built-in PXI trigger bus synchronization, multi-chassis clock & trigger sharing Form Factor: Standard 3U PXIe single slot module, fits any PXIe compatible chassis slot Operating Env: Industrial temperature range 0℃ ~ 55℃, shock & vibration resistant for test bench
