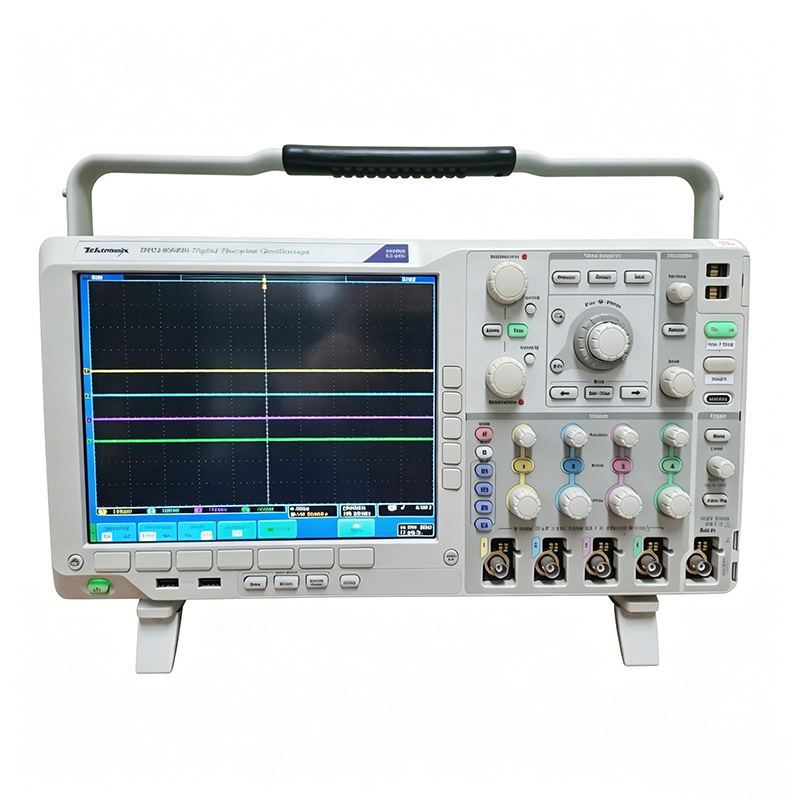

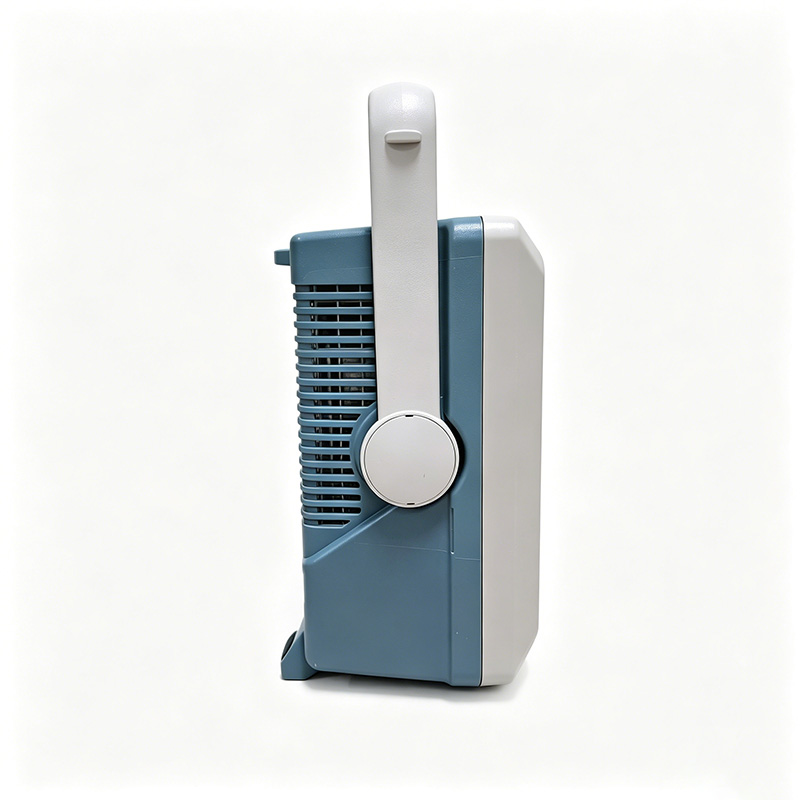

Tektronix DPO4054B 4-Ch 500MHz Digital Oscilloscope 2.5GS/s 20Mpts USB LAN

Bandwidth: 500MHz (-3dB), rise time 700ps (typical). Channels: 4 analog channels, supports 1MΩ/50Ω impedance switching. Sampling rate: 2.5GS/s on all channels, up to 2.5GS/s per channel. Memory depth: 20Mpts per channel, longest record length 8ms (at maximum sampling rate). Waveform capture rate: >50,000 frames/sec, quickly catches rare glitches and transients. Vertical resolution: 8 bits (11 bits in high-resolution mode). Input voltage: 300V RMS at 1MΩ (CAT II), 5V RMS at 50Ω. Display: 10.4-inch XGA color screen. Interfaces: USB 2.0 (device/host), Ethernet (LAN), video output.
