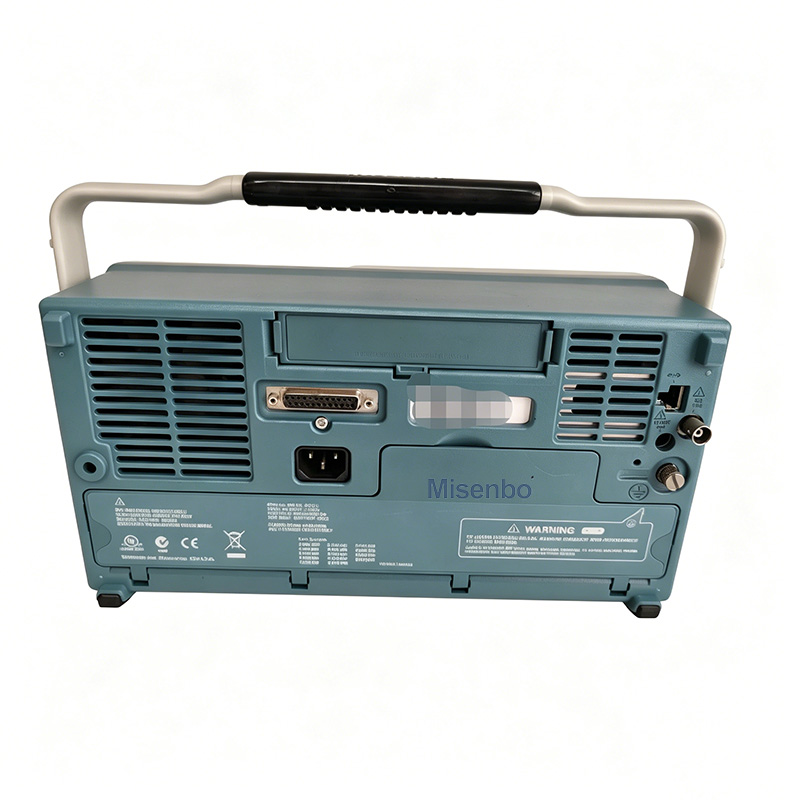

Tektronix TDS3054B 4 Channel Digital Color Oscilloscope 500 MHz, 5 GS/s TESTED

Bandwidth: 500 MHz (all channels) Channels: 4 channels (independent) Sampling rate: 5 GS/s real-time (single channel) Record length: 10,000 points per channel Rise time: <700 ps Display: VGA color LCD Vertical resolution: 9 bit Input impedance: 1 MΩ || 13 pF Maximum input voltage: 150 Vrms (CAT I); up to 300 Vrms with 10X probe (CAT II) Trigger: Edge, pulse width, runt, setup/hold, video, serial, logic Interface: LAN (Ethernet), GPIB, RS-232, VGA, TekProbe Dimensions / Weight: approx. 375×176×430 mm / 3.2 kg
