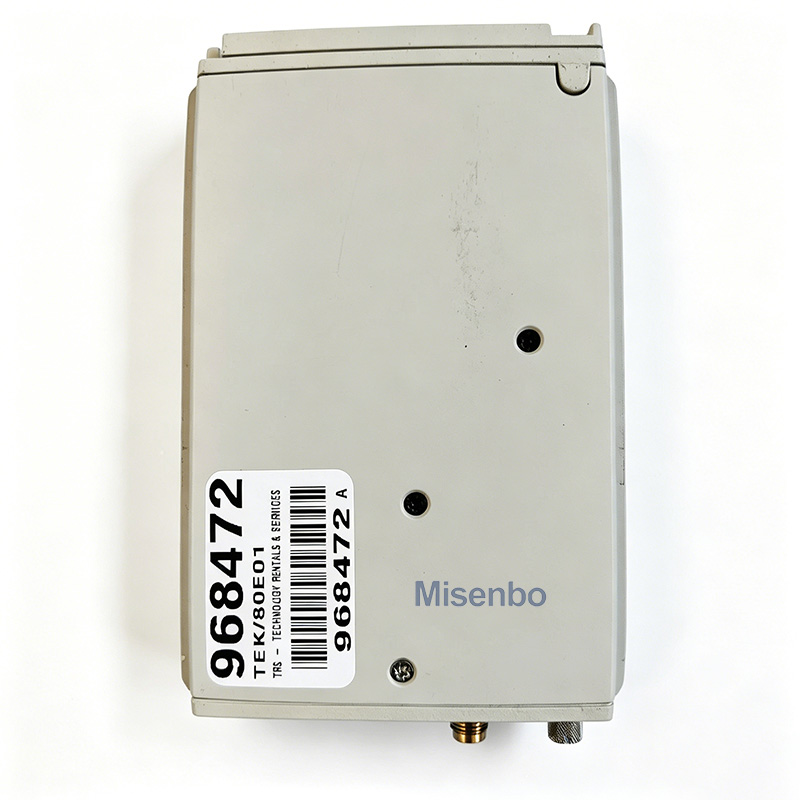

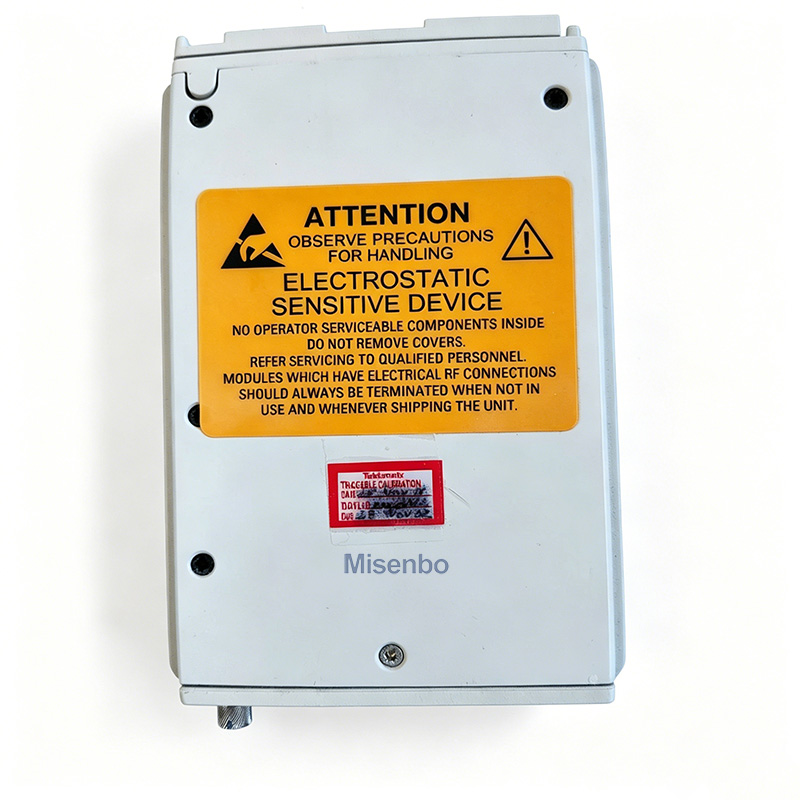

Tektronix 80E01 Sampling Module for TDS/CSA8000 series Oscilloscopes Used

Bandwidth: DC–50 GHz Channel: 1 channel (single-ended) Rise time: 7.0 ps (typical) Input impedance: 50 Ω ±0.5 Ω Connector: 2.4 mm female (includes 2.4 mm to 2.92 mm adapter) Vertical sensitivity: 10 mV – 1 V full scale Noise: ≤2.3 mV RMS (max), 1.8 mV RMS typical Maximum input voltage: 2.0 V (DC ACp-p) Power consumption: 1.1 W Compatible hosts: TDS8000/B, CSA8000/B, DSA8200
