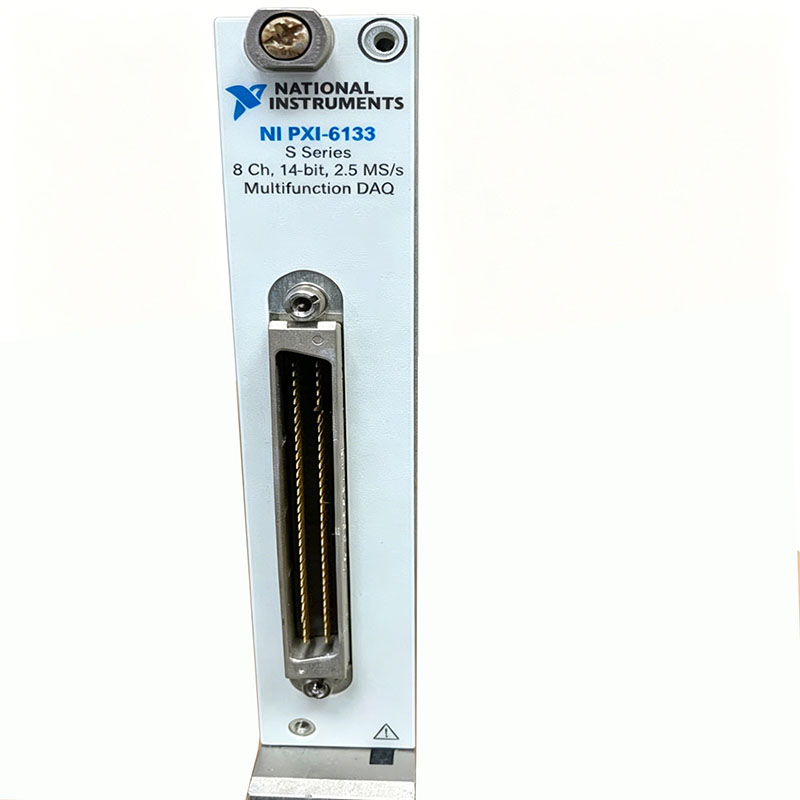

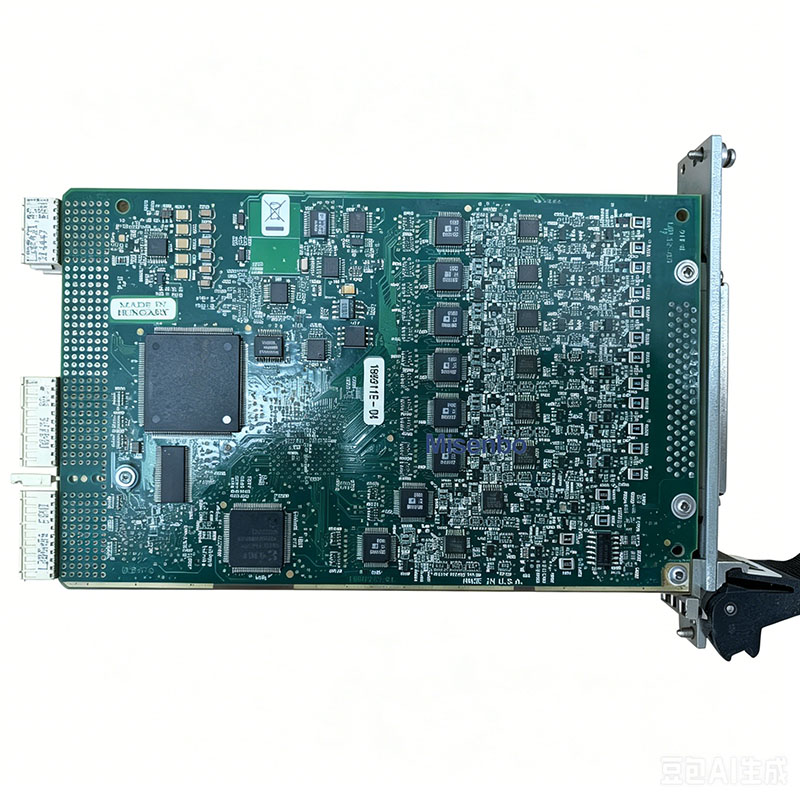

Used National Instruments NI PXI-6133 S Series 8Ch 14Bit Multifunction DAQ

Core Hardware Specifications Analog Input: 8‑channel simultaneous acquisition Resolution: 14‑bit ADC Maximum Sampling Rate: 2.5 MS/s per channel, full‑speed simultaneous sampling across 8 channels Input Range: ±0.1 V ~ ±10 V, software‑configurable Bandwidth: 1.25 MHz Connector: DB‑37 connector Bus: Standard PXI 3U modular bus On‑board 64 MB memory for continuous high‑speed streaming acquisition Key Features Hardware‑synchronized 8‑channel acquisition with zero phase difference between channels, ideal for parallel measurement of multi‑axis and array‑type sensors 2.5 MS/s high‑speed sampling for capturing shock signals, transient pulses and high‑frequency vibration signals S‑Series anti‑interference design with industrial‑grade stability, suitable for harsh test environments Integrated multifunction DAQ: analog input, digital I/O, counter/timer for all‑in‑one measurement Compatible with NI‑DAQmx driver, supporting development via LabVIEW, Python, C#; multi‑card synchronization with other PXI modules to build large‑scale test systems
