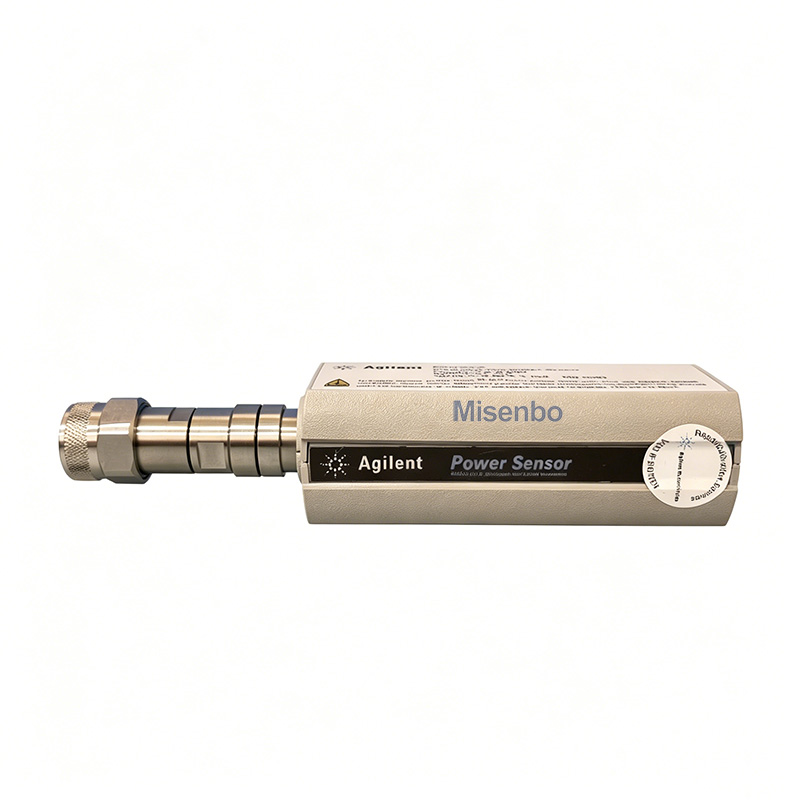

Keysight Agilent E9323A Peak and Average 50MHz-6GHz Power Sensor

Fully tested & working used Keysight (Agilent) E9323A E-series peak and average power sensor. It is designed for both average and peak power measurements of CW, pulsed, and complex modulated signals across 50 MHz to 6 GHz, with a 90 dB wide dynamic range from -70 dBm (100 pW) to +20 dBm (100 mW). The sensor features a fast rise time of <10 ns, allowing accurate capture of high-speed pulse edges and transient events. It also offers low SWR for minimal mismatch uncertainty and fast measurement speeds up to 400 readings/sec when paired with compatible EPM-P series power meters. The integrated EEPROM stores calibration factors, linearity, and temperature compensation data for plug-and-play operation. Equipped with a Type-N (male) 50Ω connector, it is compatible with EPM-P (E4416A/17A), EPM, and P-series power meters. Fully calibrated, inspected, and in excellent working condition.
