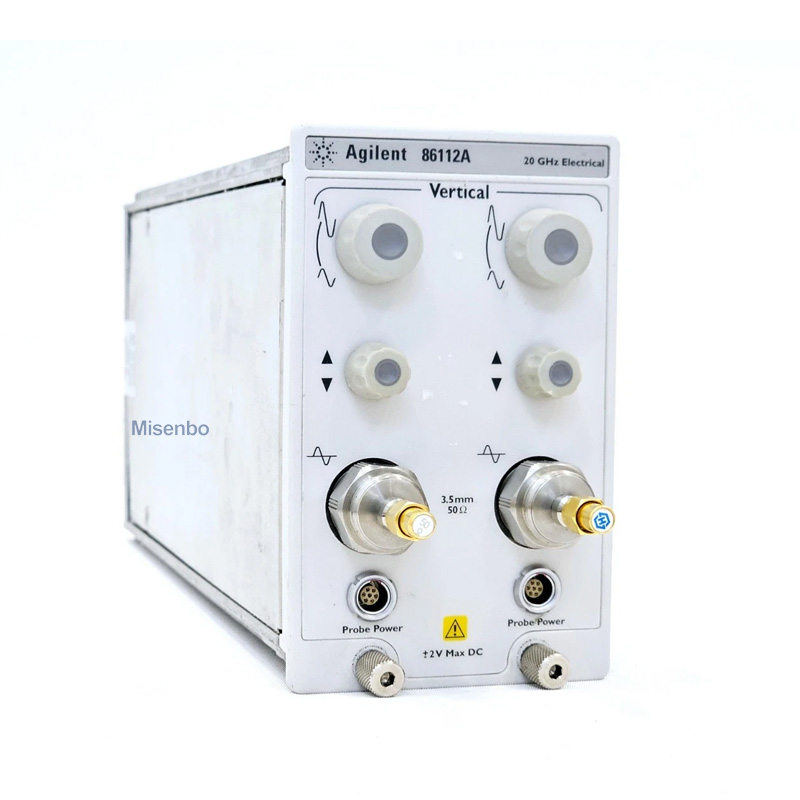

Agilent 86112A 20 GHz Dual Channel Electrical Module 3.5mm Plug-In DCA

Condition:Used The Agilent 86112A is a 20 GHz dual-channel electrical plug-in module designed for Infiniium DCA/DCA-J oscilloscope mainframes (86100A/B/C). It features two 3.5 mm male connectors, user-selectable bandwidth (12.4 GHz or 20 GHz), and low noise performance (0.25 mV RMS @12.4 GHz, 0.5 mV RMS @20 GHz). The module supports a maximum input of ±2 VDC, delivering high-fidelity waveform measurements for high-speed digital and serial bus testing.
